Make your own battery for E-200 ภาษาไทย
Two examples (1. Nokia 331x battery 2. Siemens C45 battery)
1. Nokia 331x battery (stronger power)
Battery 1400 MA for E-200, can be used for about 13 hrs, modified from Nokia 331x battery, cost 450 Baht (1usd=44Baht)
Buy battery brand name Commy (in Thailand)

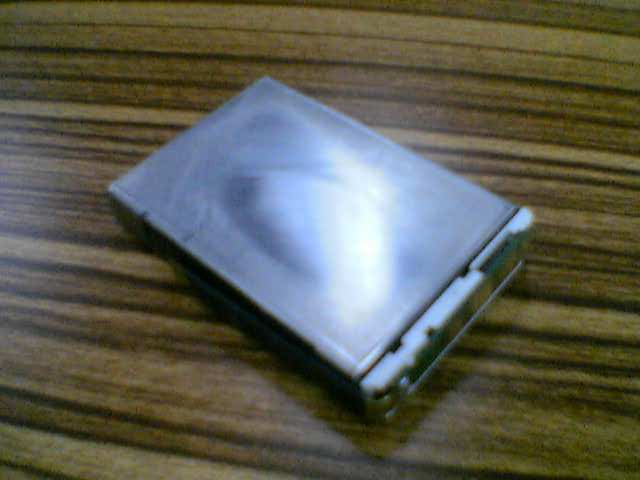

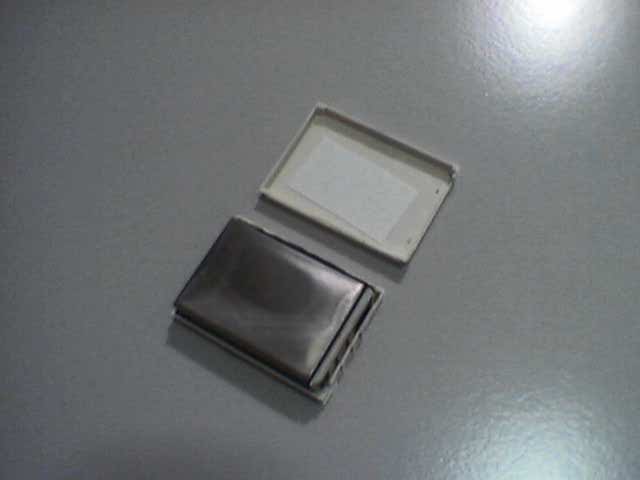

Take all plastic over out as picture.
I'm not sure in your country, try max ampere for model BLC-2.
The body is (-), put tape to protect midle and (+) pole then use copper plate soldering with (+) as below picture.

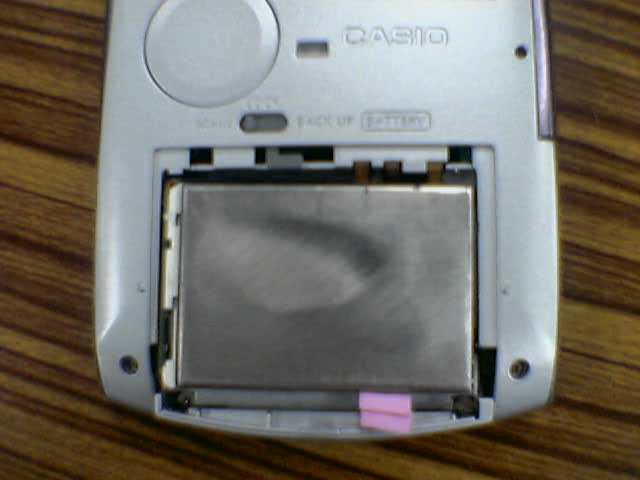

When insert battery, I have to support it up (pink foam) as below picture.
Testing result.
Uptime Meter Plugin v3.2
Copyright(C) 2002-03 by Alexander Eltsyn (ae@ae.inc.ru)
Timer started 24-Feb-03, 09:46
Report generated: 24-Feb-03, 23:09
Current uptime: 13:22
Battery charge level: 0%
Uptime Charge
-----------------
1:41 100%
3:23 90%
4:16 80%
5:27 70%
6:03 60%
6:29 50%
7:52 40%
7:53 30%
10:35 20%
12:16 10%
12:19 0%
12:21 10%
13:22 0%
Application Uptime Counter
----------------------------------------------
Settings 2:40 1
WorldTimeARM 0:29 2
Contacts 0:29 2
WorldTime Freeware 0:00 3
PocketM 0:19 8
Engineering Calculator 0:00 1
Pocket Word 0:03 2
Pocket Excel 0:37 6
SketchArtist 0:09 8
Message 0:00 9
RESCO Explorer 0:14 8
Progress 0:00 1
Open 0:00 2
VITO Products 0:00 1
Options 0:00 1
Open with 0:00 1
Save As 0:00 2
Solitaire 0:02 1
Games 0:02 1
Programs 1:28 1
WorldTime - Settings 0:00 2
MpegTV Hidden Window 0:00 1
PocketTV [opening...] 0:00 1
PocketTV Pocket_bird_love_in_th 0:00 1
Microsoft Reader 0:09 4
Main Battery Low 0:00 1
TV remote controller 0:03 1
Demo version ! 0:03 1
Notes 0:01 1
Inbox 0:03 1
Main Battery Very Low 0:01 1
Windows Media 0:07 1
WMPlayer File System Notify Des 0:07 1
IA Presenter 0:04 1
Discovery Dictionary 0:03 1
Search Zip Files 0:03 1
Internet Explorer 0:03 1
As it's high current becareful when you're doing.
Use your own risk, I'm not responsible for any damage.
As I've heard news, battery explosion in class room in Finland (same type, if I'm not mistaken).

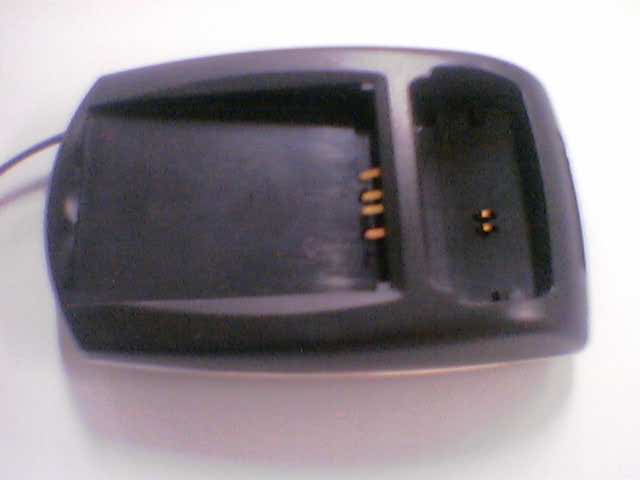

For charger, I use the former battery charger.

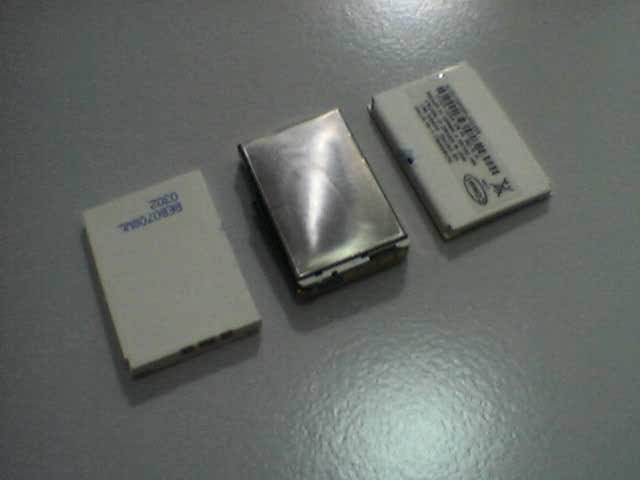

2. Siemens C45
Wiring for C45 is exactly same as E-200 (3poles).
Take out front plate plastic and cut corner (otherwise cannot put battery cover with finish)

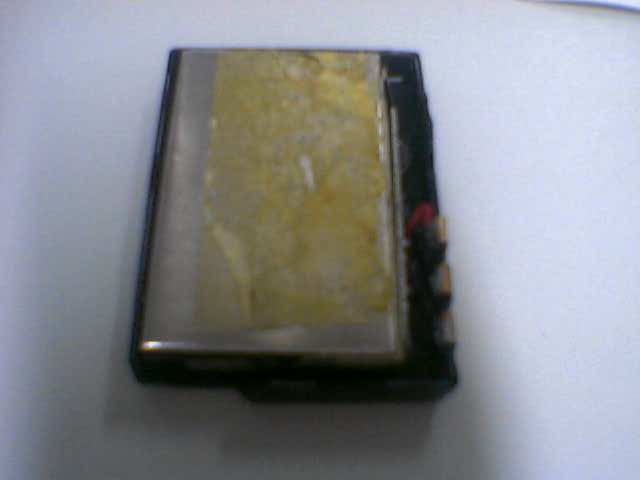

Prepare 3 copper plates fold them (no need glue), soldering with existing wire (use volt-meter to check pole)
Put paper to cover battery or remove glue, before install battery cover.

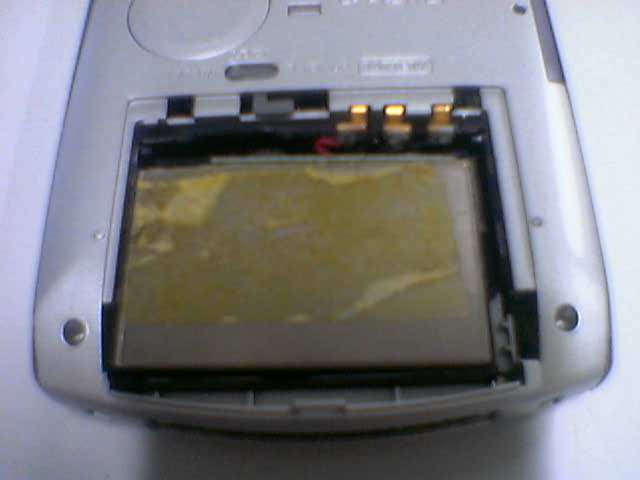

You can now new battery as the original battery from E-200.
Testing report:
Uptime Meter Plugin v3.2
Copyright(C) 2002-03 by Alexander Eltsyn (ae@ae.inc.ru)
Timer started 23-Feb-03, 08:18
Report generated: 23-Feb-03, 22:04
Current uptime: 7:54
Battery charge level: 0%
Uptime Charge
-----------------
0:50 100%
1:51 90%
2:12 80%
2:57 70%
3:21 60%
3:47 50%
4:10 40%
5:06 30%
5:59 20%
7:04 10%
7:54 0%
Application Uptime Counter
----------------------------------------------
Settings 0:09 1
Pocket Word 0:09 1
RESCO Explorer 0:09 1
File Explorer 0:09 1
PocketM 0:16 5
About 0:00 1
IA Presenter 0:19 1
Main Battery Low 0:00 1
Main Battery Very Low 0:00 1
Xprt Message Window 0:08 1
Use your own risk, I'm not responsible for any damage.
Don't blame me if you make any mistake. LoL
